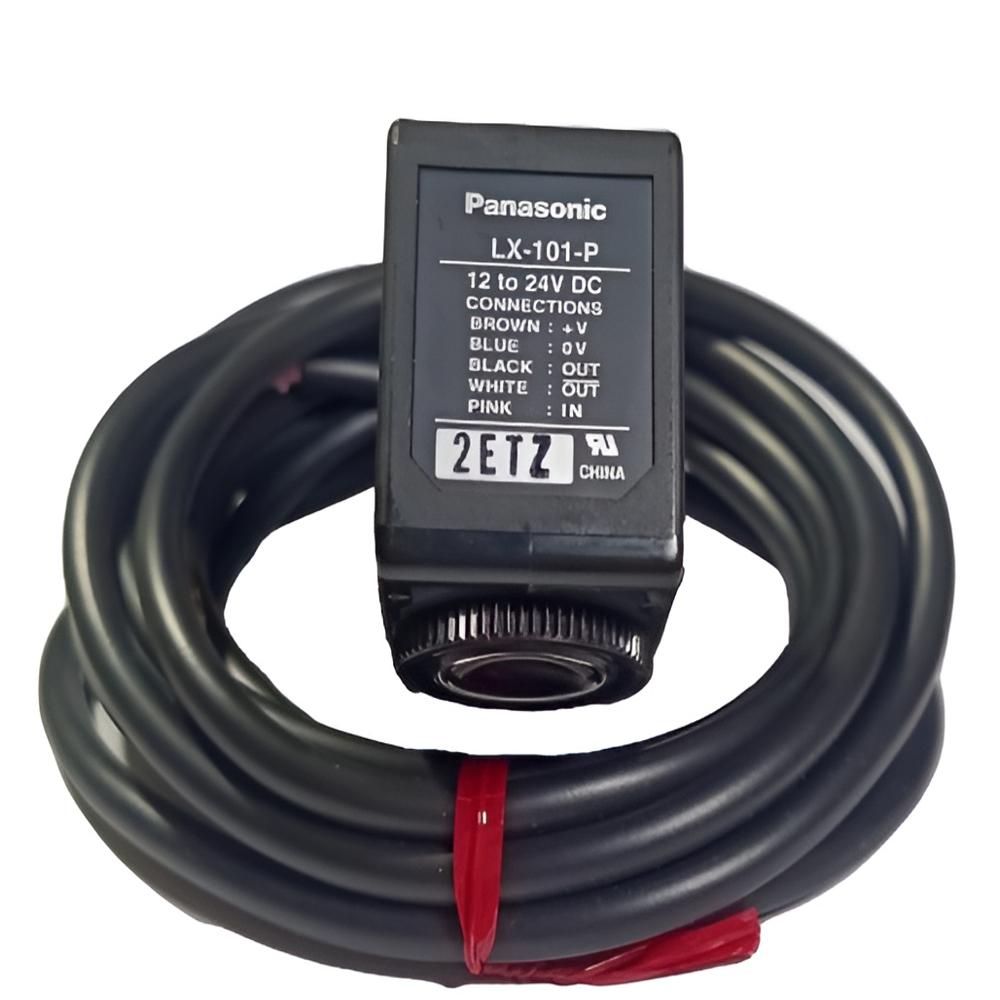

Panasonic LX-101-P

About Panasonic LX-101-P

• Sensing Range: 10 3 mm (0.394 0.118 inches)

• Spot Size: 1 mm (width) 5 mm (height) at a 10 mm (0.394 inches) setting distance

• Supply Voltage: 12 to 24 V DC 10% (Ripple P-P 10% or less)

• Current Consumption:

  • Normal Mode: 750 mW or less (30 mA or less at 24 V)

  • ECO Mode: 600 mW or less (25 mA or less at 24 V)

• Outputs:

  • Output 1 (OUT1): PNP open-collector transistor

    • Maximum source current: 50 mA

    • Applied voltage: 30 V DC or less

    • Residual voltage: 1.5 V or less at 50 mA

  • Output 2 (OUT2): PNP open-collector transistor

    • Maximum source current: 50 mA

    • Applied voltage: 30 V DC or less

    • Residual voltage: 1.5 V or less at 50 mA

• Response Time:

  • Mark Mode: 45 s or less

  • Color Mode: 150 s or less

• Teaching Input: PNP non-contact input

  • Signal condition: High: +4 V to +V (sink current: 3 mA or less), Low: 0 to +0.6 V, or open

  • Input impedance: Approximately 10 k

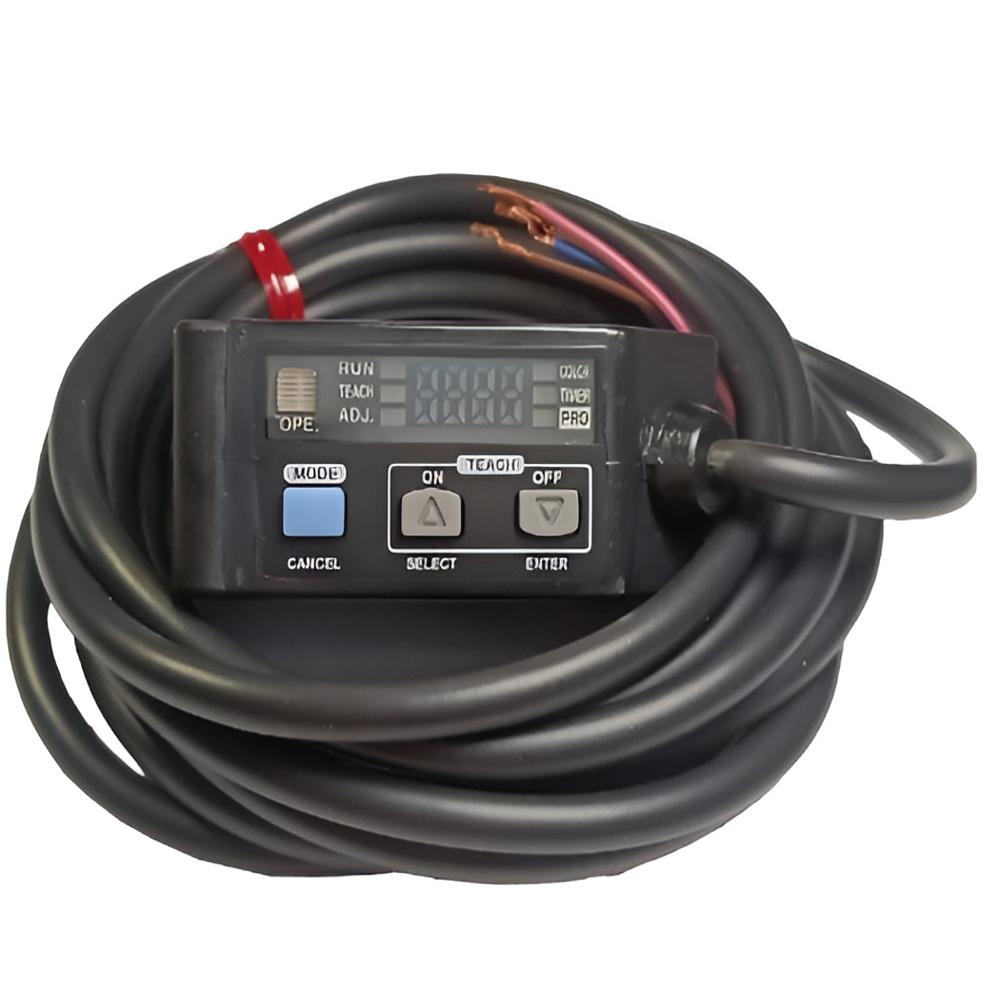

• Digital Display: 4-digit red LED display

• Sensitivity Setting:

  • Mark Mode: 2-level teaching / Full-auto teaching

  • Color Mode: 1-level teaching

• Fine Sensitivity Adjustment: Incorporated

• Timer Function: Variable ON-delay / OFF-delay timer, switchable either effective or ineffective (Timer period: 1 to 500 ms, 9 levels variable)

• Protection: IP67 (IEC)

• Ambient Temperature:

  • Operating: -10 to +55 (14 to +131 )

  • Storage: -20 to +70 (-4 to +158 )

• Ambient Humidity: 35 to 85 % RH, Storage: 35 to 85 % RH

• Ambient Illuminance: Incandescent light: 3,000 lx or less at the light-receiving face

• Voltage Withstandability: 1,000 V AC for one minute between all supply terminals connected together and enclosure

• Vibration Resistance: 10 to 500 Hz frequency, 3 mm double amplitude or maximum acceleration 196 m/s in X, Y, and Z directions for 2 hours each

• Shock Resistance: 500 m/s acceleration (50 G approx.) in X, Y and Z directions three times each

• Emitting Element: Combined Red / Green / Blue LEDs (Peak emission wavelength: 640 nm, 525 nm, 470 nm)

• Material:

  • Enclosure: PBT

  • Display cover: Polycarbonate

  • Operation buttons: Silicone rubber

  • Lens: Glass

  • Lens holder: Aluminum

• Cable: 0.34 mm 5-core cabtyre cable, 2 meters long

• Cable Extension: Extension up to total 100 meters is possible with 0.3 mm or more cable

• Weight:

  • Net weight: 120 g

  • Gross weight: 180 g

• Accessory: M4 (length 30 mm) screw with washers: 2 pcs
