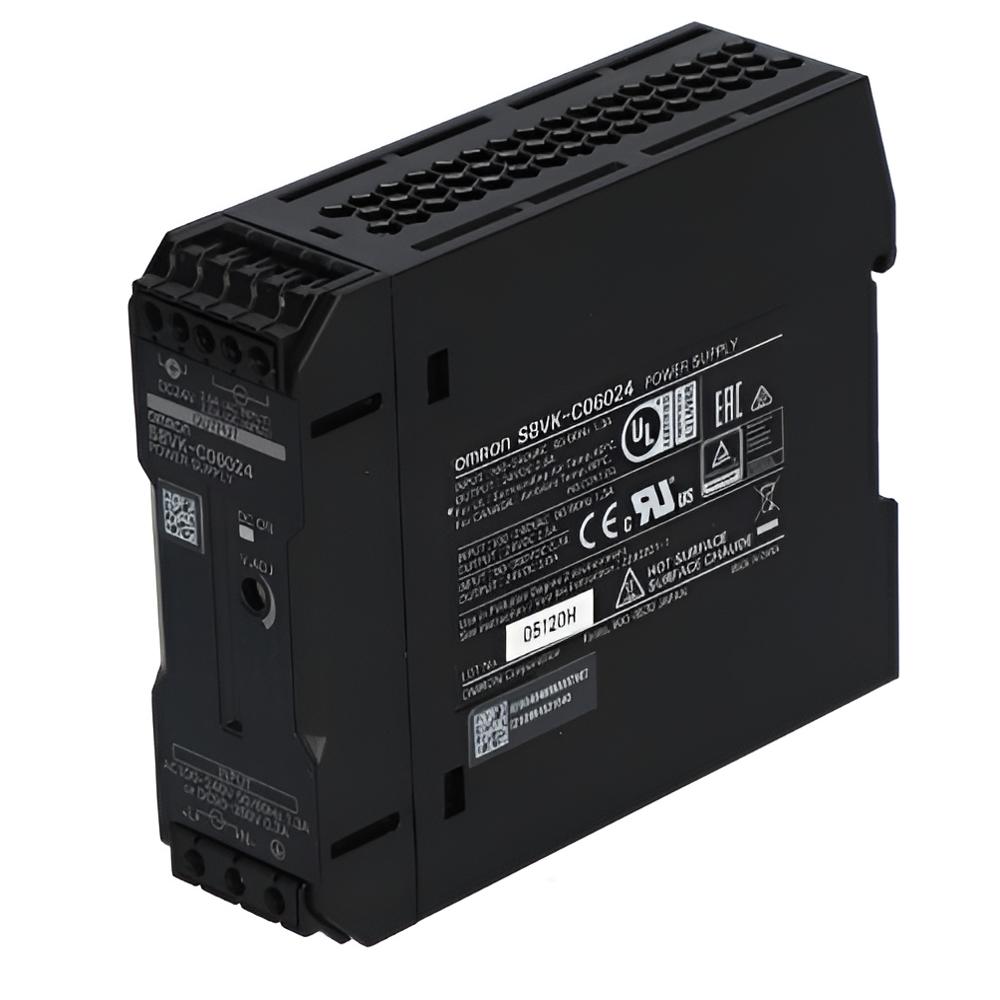

Omron S8VK-C06024/ED2 Switch Mode Power Supply (SMPS)

Send Inquiry

Request To Call Back

Omron S8VK-C06024/ED2 Switch Mode Power Supply (SMPS)

Name: Omron S8VK-C06024/ED2 Switch Mode Power Supply (SMPS)
Brand: PS Corporation
Price: 1350.0 INR
Availability: InStock

Price 1350.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Omron S8VK-C06024/ED2 Switch Mode Power Supply (SMPS) Specification

Power Supply
AC-DC Converter.

Application
Control Panel Powering,Sensor & Actuator Supply,Machine Building

Power Factor
0.49

Working Temperature
-25 C to +60 C Celsius (oC)

Noise Level
: 70 mVp-p max. db

Output Type
DC

Phase
Single Phase

Operating Temperature
-25 C to +60 C Celsius (oC)

Rated Power
60 Watts

Rated Current
2.5 Ampere (amp)

Output Current
2.5 Ampere (amp)

Current Range
2.5 Ampere (A)

Features
Universal Input, Compact "Book-type" Design,High Efficiency,Natural Convection Cooling

Product Type
Switch Mode Power Supply

Power Rating
60 Watts

Output Power
60 Watt (w)

Output Frequency
50/60 Hertz (HZ)

Input Voltage
100 240V Volt (V)

Efficiency
88%

Line Regulation
0.5% max.

Storage Temperature
-40 C to +85 C Celsius (oC)

Rated Voltage
100 240 Volt (V)

Weight
149 Grams (g)

Usage & Applications
Control Panel Powering,Sensor & Actuator Supply,Machine Building

Display Type
LED Indicator

Material
metal

Frequency
50 Hertz (HZ)

Conductor
copper

Omron S8VK-C06024/ED2 Switch Mode Power Supply (SMPS) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
200 Pieces Per Month

Delivery Time
1 Days

Sample Available
No

Packaging Details
Standard industrial box packing with protective cushioning (single unit), bulk packed in cartons for shipment.

Main Domestic Market
All India

About Omron S8VK-C06024/ED2 Switch Mode Power Supply (SMPS)

The Omron S8VK-C06024/ED2 is a compact, high-reliability, DIN rail-mounted switching power supply part of the S8VK-C (Lite) series. It is designed for industrial automation, control panels, and machine control, offering a cost-effective solution without compromising on the robust quality required for global industrial standards.

Protection & Safety Features

Overload Protection: 105% to 160% of rated load current (automatic reset).
Overvoltage Protection: Yes, prevents damage during voltage spikes.
Short Circuit Protection: Built-in protection for safety in industrial loops.
Indicators: Green LED output indicator (lights up when output is 80-90% of rated voltage).
Dielectric Strength: 3.0 kVAC for 1 min (between input and output).

Reliable Power for Industrial Automation

Omron's S8VK-C06024/ED2 SMPS is designed with harsh industrial settings in mind. Its universal input voltage support and natural cooling make it resilient to varying environmental conditions. The compact 'book-type' form factor allows efficient utilization of control panel space, while robust coated metal housing enhances durability.

High Efficiency and Advanced Protection

This power supply boasts an impressive 88% efficiency, minimizing energy loss and heat build-up during operation. Its built-in protections and regulated output ensure consistent performance even under fluctuating input conditions, while the LED indicator provides clear status at a glance for quick diagnostics.

Versatile Applications Across Industries

Ideal for powering control panels, sensors, actuators, and machinery, the S8VK-C06024/ED2 is suited for a variety of industrial scenarios. Its reliable output and broad operating temperature range make it a go-to solution for distributors, manufacturers, suppliers, and traders throughout India.

FAQ's of Omron S8VK-C06024/ED2 Switch Mode Power Supply (SMPS):

Q: How do I install the Omron S8VK-C06024/ED2 SMPS in my control panel?

A: The S8VK-C06024/ED2 can be easily installed using its compact book-type design, which fits neatly into standard control panels. Mount with the provided brackets, connect the AC input (100-240V) and the DC output terminals, and ensure appropriate wiring for safety and optimal airflow.

Q: What are the benefits of the natural convection cooling feature in this power supply?

A: Natural convection cooling eliminates the need for additional cooling fans, reducing maintenance, operational noise, and potential points of failure while ensuring stable performance across a wide temperature range.

Q: When should I use this power supply in my automation setup?

A: The S8VK-C06024/ED2 is suitable for continuous operation in environments that require reliable DC power for devices such as sensors, actuators, or machine control circuits, particularly when space and energy efficiency are important considerations.

Q: Where can the Omron S8VK-C06024/ED2 be used?

A: This SMPS is ideal for use in industrial control panels, automation systems, machinery, and any application requiring stable 24V DC power within its rated capacity. Its resilience and flexibility allow deployment in factories, workshops, or commercial settings.

Q: What protection features does this SMPS include?

A: The S8VK-C06024/ED2 provides regulated output with a line regulation of 0.5% max., ensuring consistent voltage delivery. It is also engineered to handle input voltage fluctuations and thermal stresses, enhancing overall operational safety.

Q: How does the LED indicator help during operation?

A: The built-in LED indicator provides immediate visual feedback about the power supply's operational status, facilitating rapid troubleshooting and ensuring system reliability.

Q: What is the process for replacing an existing power supply with the S8VK-C06024/ED2?

A: First, disconnect all power, then remove the old unit. Mount the S8VK-C06024/ED2 in the same or designated slot, connect input and output terminals as per the wiring diagram, and power up the system, checking the LED indicator for correct functioning.
