Meanwell LRS-200-24 Switching Power Supply

Send Inquiry

Request To Call Back

Meanwell LRS-200-24 Switching Power Supply

Name: Meanwell LRS-200-24 Switching Power Supply
Brand: PS Corporation
Price: 1350.0 INR
Availability: InStock

Price 1350.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Meanwell LRS-200-24 Switching Power Supply Specification

Output Type
DC

Rated Power
200 Watts

Application
Industrial Automation Systems LED Lighting / Display Systems CNC Machines & Factory Equipment Security & Surveillance Power PLC / HMI / Control Panel Power Supply Communication & Networking Devices Telecommunication Power System Test & Measurement Instruments Battery Charging & UPS Systems

Features
Single Output Power Supply, Wide Input Voltage Range, High Efficiency, Fanless Convection Cooling, Full Protection Features, Low Ripple & Noise

Power Supply
200 Watts

Working Temperature
30 C to +70 C Celsius (oC)

Power Factor
AC 115V/230V

Operating Temperature
30 C to +70 C Celsius (oC)

Rated Current
8.5A Ampere (amp)

Current Range
8.5A Ampere (A)

Output Current
8.5A Ampere (amp)

Product Type
Switching Mode Power Supply

Output Power
200 Watt (w)

Input Voltage
85 264V Volt (V)

Voltage Protection
29 36V DC

Efficiency
88 89%

Material
metal

Line Regulation
0.5%

Storage Temperature
40 C to +85 C Celsius (oC)

Usage & Applications
Industrial Automation Systems LED Lighting / Display Systems CNC Machines & Factory Equipment Security & Surveillance Power PLC / HMI / Control Panel Power Supply Communication & Networking Devices Telecommunication Power System Test & Measurement Instruments Battery Charging & UPS Systems

Rated Voltage
8.5 Ampere (A)

Frequency
47 63 Hertz (HZ)

Meanwell LRS-200-24 Switching Power Supply Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

About Meanwell LRS-200-24 Switching Power Supply

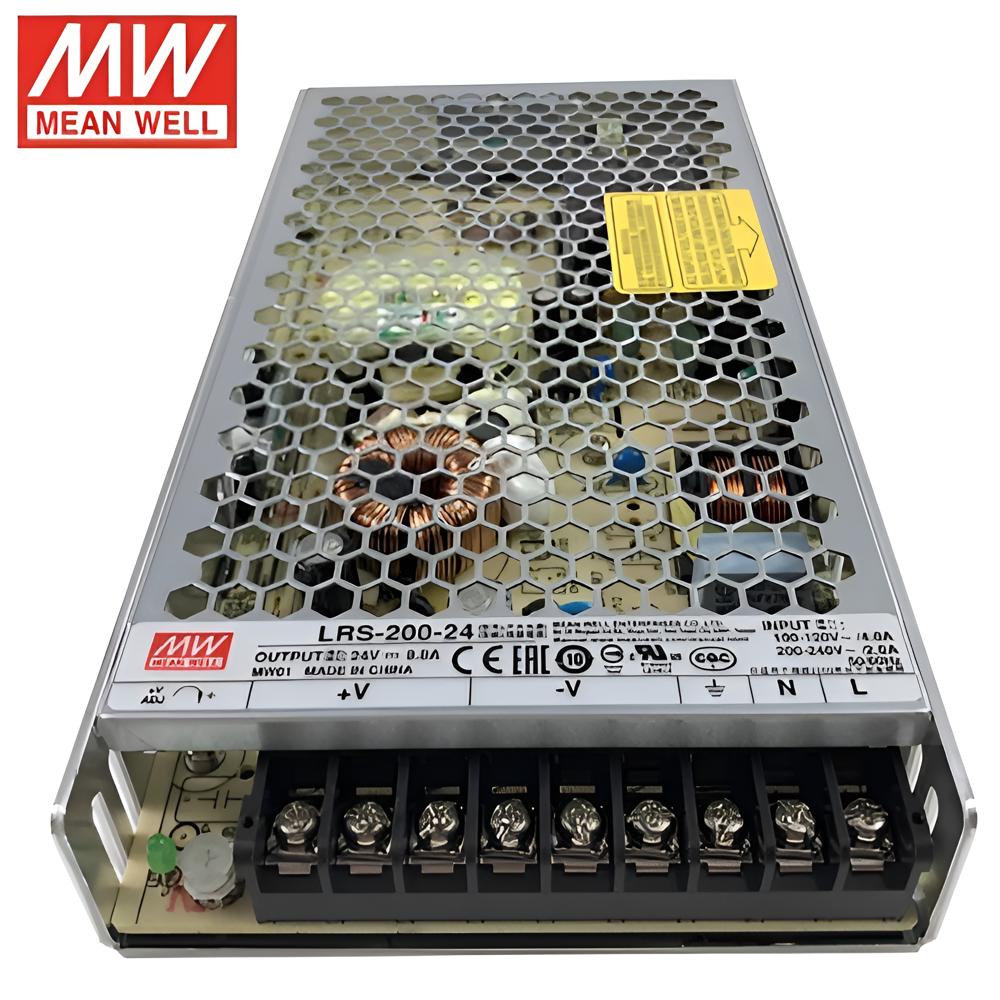

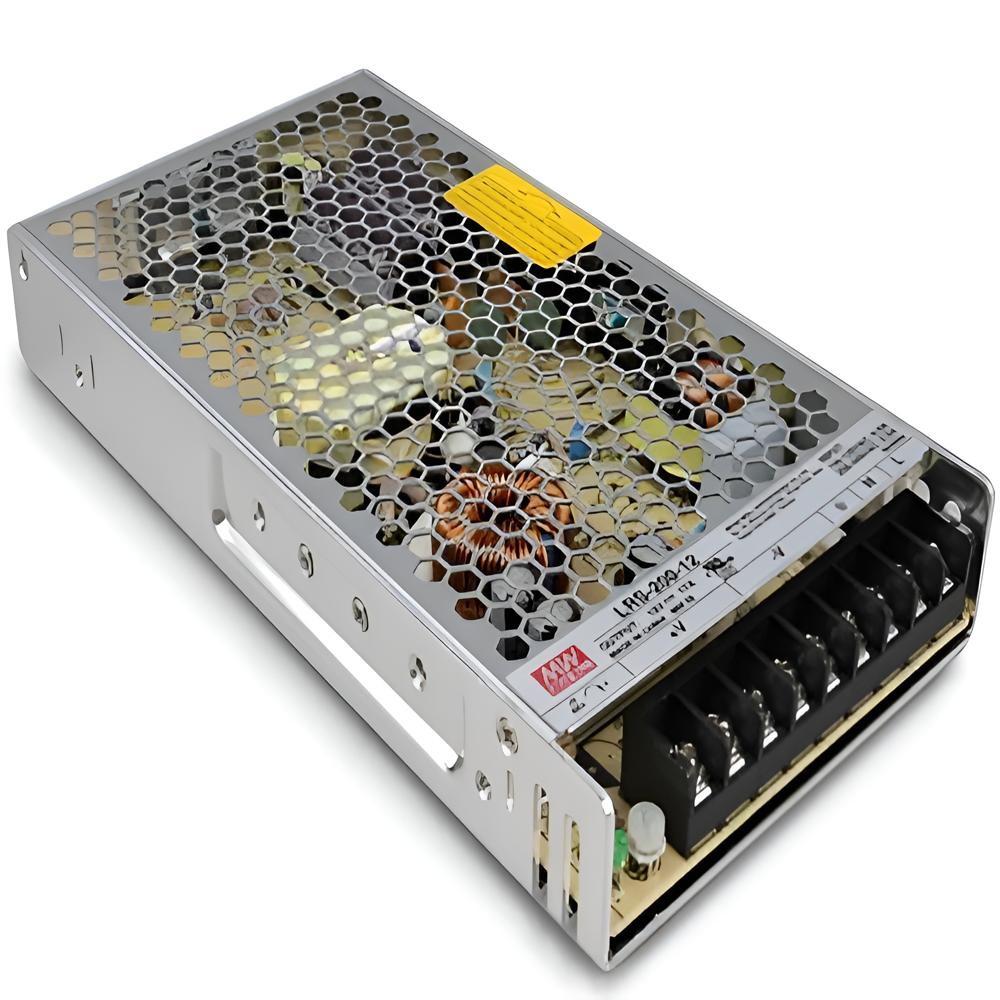

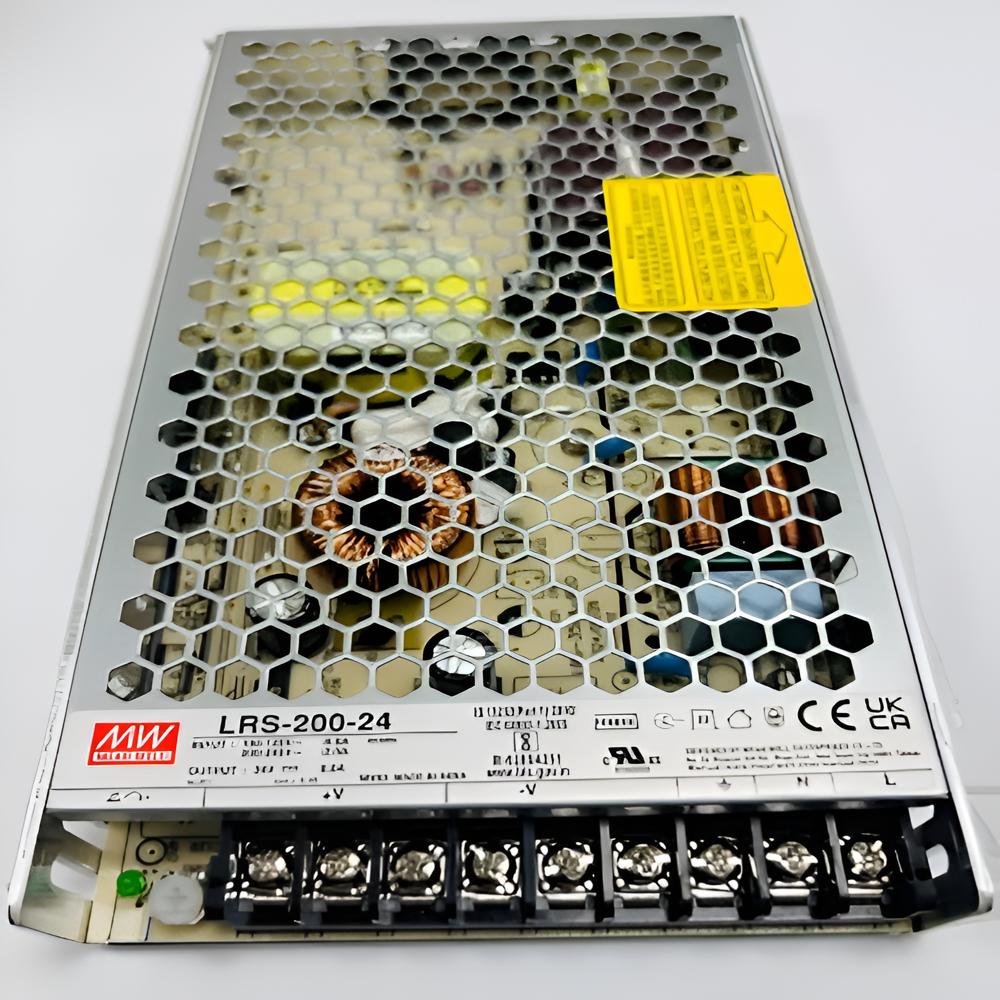

The Meanwell LRS20024 is a robust 200W singleoutput switching power supply designed for demanding industrial and commercial applications. Featuring a 24V DC output at 8.5A, this model offers high efficiency, reliable performance, and full protection features in a compact, enclosed metal chassis.

With a wide AC input range and fanless convection cooling, it delivers stable DC power with minimal noise, low ripple & noise, and superior reliability making it ideal for automation, LED systems, control cabinets, CNC machines, security systems, and communication equipment.

KEY FEATURES

Wide AC Input Range: 85264V AC (4763Hz)
High Power Output: 200W at 24V DC (8.5A)
Fanless / Convection Cooling: Quiet, maintenancefree operation
High Efficiency: Up to 89% efficiency
Compact Enclosed Design: Industrial metal housing
Full Protection: Overload (OLP), Overvoltage (OVP), Short Circuit (SCP)
LED Indicator: Power ON status
Universal Input: 120370V DC support
Low Ripple & Noise: 240mVpp
UL / CE Certified: Meets industrial safety standards
Wide Operating Temperature: -30C to +70C

Robust Performance Across Diverse Environments

Engineered to operate between -30C and +70C, the LRS-200-24 is built to handle challenging industrial settings. Its sturdy metal body enhances reliability, while full electronic protection guards against over-voltage and over-current scenarios. Whether in high-humidity factories or temperature-volatile sites, you can count on consistent power delivery.

Versatile Applications for Industry and Technology

The wide input voltage range (85-264V AC) allows this power supply to be deployed in various applications such as industrial automation, LED displays, CNC machinery, communication devices, and battery charging systems. The single 24V DC output is suitable for powering sensitive electronics, control panels, and surveillance systems with excellent stability.

Efficient, Silent, and Secure Power Delivery

With an efficiency of up to 89% and fanless convection cooling, the LRS-200-24 minimizes energy loss and operates silently, reducing maintenance needs. Its full set of protection features-including voltage and current safeguards-ensures safe operation, making it a robust choice for demanding setups that require dependable, low-noise power.

FAQ's of Meanwell LRS-200-24 Switching Power Supply:

Q: How do I install the Meanwell LRS-200-24 power supply in my industrial automation system?

A: The LRS-200-24 can be installed on a DIN rail or within a control panel. Ensure proper ventilation around the metal housing for optimal convection cooling. Connect the AC input (85-264V) to the terminals, then wire the DC output (24V, up to 8.5A) to your devices, following local electrical codes and safety guidelines.

Q: What benefits does fanless convection cooling provide in this power supply?

A: Fanless convection cooling eliminates moving parts, resulting in silent operation and reduced risk of mechanical failure. This enhances reliability and extends service life, making the LRS-200-24 especially suitable for noise-sensitive environments and maintenance-critical installations.

Q: When should I consider using the LRS-200-24 for my application?

A: Choose the LRS-200-24 when you require a robust 24V DC supply with high efficiency and low ripple, particularly in demanding fields like industrial automation, LED lighting, factory equipment, telecommunications, or measurement instruments, where reliability and dependable power are vital.

Q: Where can the Meanwell LRS-200-24 be used effectively?

A: This power supply can be used effectively in diverse settings such as manufacturing plants, LED or display installations, security system networks, telecom infrastructure, PLC/HMI power units, CNC machines, and battery charging systems. Its wide input range and sturdy design make it adaptable to various operational environments.

Q: What protection features are included to ensure safe operation?

A: The LRS-200-24 includes comprehensive protections such as overload, over-voltage (29-36V DC threshold), and over-temperature safeguards. These features automatically disconnect output or limit current if unsafe conditions are detected, thus minimizing risk to both the power supply and connected equipment.

Q: How efficient is the LRS-200-24, and what does its efficiency mean for my application?

A: With an efficiency rating of 88-89%, the LRS-200-24 converts most of the incoming AC power into usable DC output with minimal loss as heat. This results in lower operating costs, reduced energy consumption, and less thermal management required-ideal for both economic and environmental considerations.
