Electrical Insulation Paper

• Application
• Battery insulation for 18650 cells

• Color
• Light brown / barley

• Function
• Prevents electrical shorts in battery packs

• Heat Resistance
• Yes

• Length
• 4 inch

• Material
• Other, Barley Paper (Vulcanized Fiber from Cellulose Wood & Cotton)

• Operating Temperature
• -40C to 105C (estimated)

• Paper Core
• Yes

• Product Type
• Insulation Paper

• Rated Voltage
• High electrical insulation (Class)

• Thickness
• 10 mm

• Weight
• GSM 150 - 200

• Width
• 3 inch

• Application
• Battery insulation for cells

• Color
• GREEN

• Density
• 1.1 Gram per cubic centimeter(g/cm3)

• Elongation
• 1.8% to 4.0%

• Function
• Electrical insulation

• Heat Resistance
• Other, Class A (105C)

• Length
• standard roll 100 m or customized

• Material
• Other, High-grade vulcanized fiber

• Operating Temperature
• -40 C to 105 C (estimated) Celsius (oC)

• Paper Core
• 38 mm / 76 mm (optional)

• Product Type
• Insulation Paper

• Rated Voltage
• up to 600 V

• Shelf Life
• 12 months in dry conditions

• Tensile Strength
• 70-100 MPa

• Thermal Conductivity
• 0.24 W/mK

• Thickness
• 0.15 mm to 1.0 mm

• Weight
• 0.12 Grams (g)

• Width
• up to 1200 mm

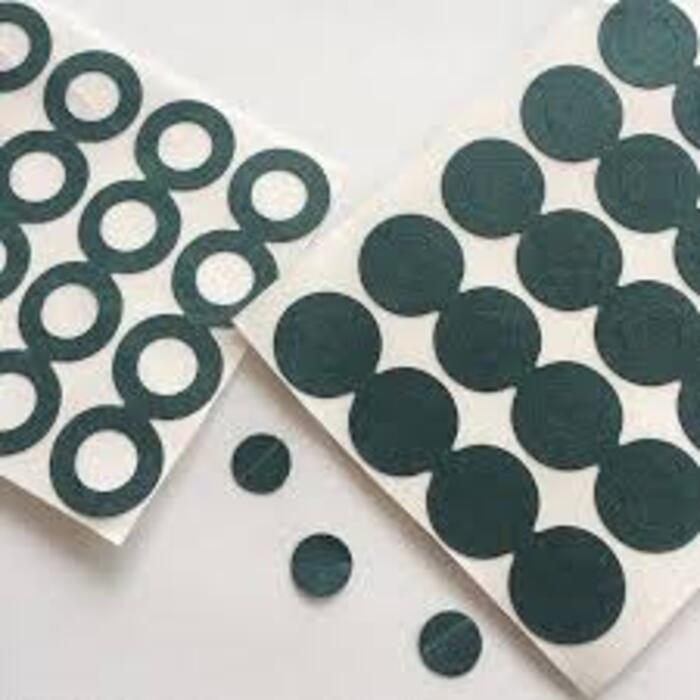

• Application
• Battery insulation for cells

• Color
• GREEN

• Operating Temperature
• -40 C to 105 C (estimated) Celsius (oC)

• Weight
• 0.12 GSM (gm/2)

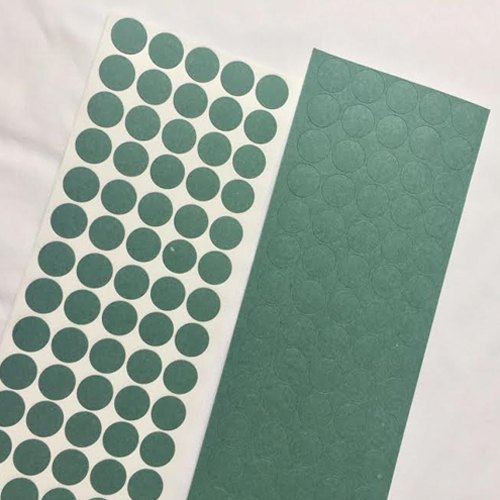

• Application
• Battery insulation for cells

• Color
• Green

• Density
• 1.1 Gram per cubic centimeter(g/cm3)

• Elongation
• 10% - 12%

• Function
• Insulation, mechanical protection, fabrication

• Heat Resistance
• Other, Good

• Length
• 2000 mm

• Material
• Other, Vulcanized fiber (cellulose-based composite)

• Operating Temperature
• Up to 120C

• Paper Core
• Not applicable (Sheet format)

• Product Type
• Other, Sheet

• Rated Voltage
• Bak 24 KV

• Shelf Life
• 12 months

• Tensile Strength
• >30 MPa

• Thermal Conductivity
• 0.34 W/mK

• Thickness
• 0.4 mm to 2.0 mm

• Weight
• 0.12 Grams (g)

• Width
• 1000 mm
